/* $Log: fermi.c,v $
* Revision 1.12 96/06/28 22:26:38 galli
* use select()
* (synchronous I/O multiplexing)
*
* Revision 1.11 96/06/28 17:45:17 galli
* separate starhist function
*
* Revision 1.10 96/06/05 16:49:23 galli
* write sampling data to fermi.dat file
*
* Revision 1.9 96/06/04 14:46:31 galli
* scale factor
*
* Revision 1.8 96/06/04 10:57:57 galli
* corrected bug in data reading
*
* Revision 1.7 96/06/03 23:14:45 galli
* some aesthetics
*
* Revision 1.6 96/06/03 21:01:37 galli
* print pulse graphic
*
* Revision 1.5 96/06/03 17:42:03 galli
* print read data
*
* Revision 1.4 96/06/03 15:35:40 galli
* some esthetics
*
* Revision 1.3 96/06/03 15:01:16 galli
* this is the 1st version working
*
* Revision 1.2 96/06/01 09:56:52 galli
* shorter syntax
*
* revision 1.1 96/06/01 09:52:15 galli
* Initial revision
* */
/*****************************************************************************/
/* compile with:
* gcc -m -Wall -I/usr/mizzi -o fermi fermi.c /usr/mizzi/vme.a
*
* The function: vmea24d16init() [in the library vme.a],
* and the macro: vmea24d16() [in the header vme.h],
* are part of MIZZI VME library.
*/
/*****************************************************************************/
#include <stdio.h>
#include <time.h>
#include <limits.h>
#include "vme.h"
#define NSAM (vmeword)80
#define DELAYREG (vmeword)10
#define NROW 21
#define EXIT_SUCCESS 0
#define EXIT_FAILURE 1
/**** global variables *******************************************************/
vmeword *adc;
vmeaddress vme_adr=0xb40010;
vmeaddress vme_len=0xc;
/**** function prototype *****************************************************/
void starhist(int *datum);
/**** start code *************************************************************/
int main(int argc,char **argv)
{
unsigned long count,count_max=ULONG_MAX;
int busy,dataready,i,iadc,status;
int dummy,datum[NSAM];
char ch;
char *out_file="/dev/null";
FILE *out;
char *line="---------------------------------------------------------------";
fd_set readfds;
struct timeval tv;
extern char *optarg;
int flag;
/* Wait up to 1000 microseconds. */
tv.tv_sec = 0;
tv.tv_usec = 1000;
while((flag=getopt(argc,argv,"hf:n:"))!=EOF)
{
switch(flag)
{
case 'f':
out_file=optarg;
break;
case 'n':
count_max=atol(optarg);
break;
case 'h':
printf("\nUsage: fermi [-n number_of_pulse] [-f output_file]\n\n");
exit(EXIT_SUCCESS);
default:
printf("\nunrecognized option\n") ;
printf("\nUsage: fermi [-n number_of_pulse] [-f output_file]\n\n");
exit(EXIT_FAILURE);
}
}
printf("\n\n\n\n\n");
printf("%s\n",line);
printf("Output file = %s\n",out_file);
printf("Number of pulse to be digitalized = %u\n",count_max);
if(!(out=fopen(out_file,"w")))
{
printf("error opening file output file");
exit(EXIT_FAILURE);
}
if(!(adc=vmea24d16init(vme_adr,vme_len)))
{
printf("error initializing VME bus");
exit(EXIT_FAILURE);
}
printf("%s\n",line);
printf("address for init \t %x\n",vme_adr);
printf("length for init \t %x\n",vme_len);
printf("return adress pointer\t %x\n",(int)adc);
printf("%s\n",line);
printf("\n\n\nDAQ started:\n");
printf("Press <return> to print another pulse\n",count);
printf("Press <q><return> to stop\n");
iadc=0; /* select channel to be read */
vmea24d16(adc+8)=NSAM; /* set the number of sampling stored in FIFO */
vmea24d16(adc+7)=DELAYREG; /* set the number of wait clock after trigger */
for(count=0;count<count_max;count++)
{
vmea24d16(adc+10)=(vmeword)0; /* clear the BUSY & DATAREADY bits */
for(i=1;;i++)
{
status=(vmea24d16(adc+9)); /* read the STATUS register */
busy=status & 0x2; /* find the BUSY bit */
dataready=status & 0x4; /* find the DATAREADY bit */
/*printf("check n. %d\tstatus = %x\tdataready = %x\tbusy = %x\n",
i,status,dataready,busy);*/
if(dataready==0x4) break;
}
dummy=vmea24d16(adc+iadc);
for(i=1;i<NSAM;i++)
{
datum[i]=vmea24d16(adc+iadc) & 0x3ff; /* read channel iadc+1 */
/* print pulse sampling */
fprintf(out,"%3d\t%4d\n",i,datum[i]);
}
FD_ZERO(&readfds);
FD_SET(0,&readfds);
if (select(1,&readfds,NULL,NULL,&tv))
{
ch=getchar();
if(ch=='\n')
{
fflush(stdin);

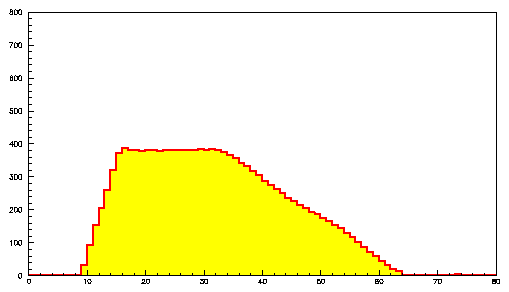

/* print pulse graphics */
starhist(datum);
printf("Pulse n. %10u. Press <return> to print another pulse\n",count);
printf(" Press <q><return> to stop\n");
}
else
{
while(getchar()!='\n');
if(toupper(ch)=='Q')
{
close(out);
exit(EXIT_SUCCESS);
}
}
}
}
}
/**** print histogram ********************************************************/
void starhist(int *datum)
{
int irow,icol;
float cutlo,cuthi;
char character;
printf("\n");
for(irow=0;irow<NROW;irow++)
{
cuthi=512./(NROW-1)*(NROW-irow);
cutlo=512./(NROW-1)*(NROW-irow-1);
for(icol=0;icol<NSAM;icol++)
{
if(datum[icol]>=cutlo && datum[icol]<cuthi)character='*';
else character='.';
if(irow==(NROW-1))
{
if(datum[icol]<cutlo)character='v';
}
if(irow==0)
{
if(datum[icol]>=cuthi)character='^';
}
printf("%c",character);
}
printf("\n");
}
}
/*****************************************************************************/
