Fiducial Mark Finding with the ESS
Upgrade from FlexMap3 to FlexMapX

What is expected to work differently:

FlexMap3 evaluate the Affine transformation with the nearest 3 marks.

FlexMapX fit the affine transformation parameters with all available marks.

Features not implemented in FlexMapX (yet):

- Map load from a *.map file
- "Sheet is rotated by 180°"
- Recovery File


Important Note:

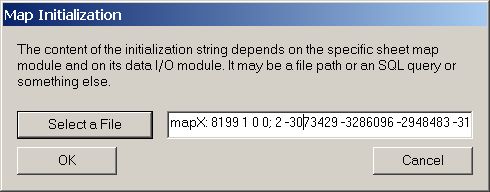

Since Map load from *.map file is not implemented, you MUST write the mark map in the initialization window:



Supported formats are:

Lateral X-Ray Mark Map
mapX: 1029351 1 0 0; 2 0 0 125100 99800; 1 121675 2399 121675 2399 1 1 2; 2 121388 97203 121388 97203 1 1 2
or
mapX: 1029351 1 0 0; 2 0 0 125100 99800; 1 121675 2399 121675 2399 1 2; 2 121388 97203 121388 97203 1 2

Front X-Ray Mark Map or Optical Mark Map
mapext: 1029351 1 0 0; 4 0 0 125100 99800; 1 9900 9899 9900 9899 1 1 2; 2 115208 10132 115208 10132 1 1 2; 3 115089 90507 115089 90507 1 1 2; 4 9844 90250 9844 90250 1 1 2

Identity Map
mapID:



Configuration

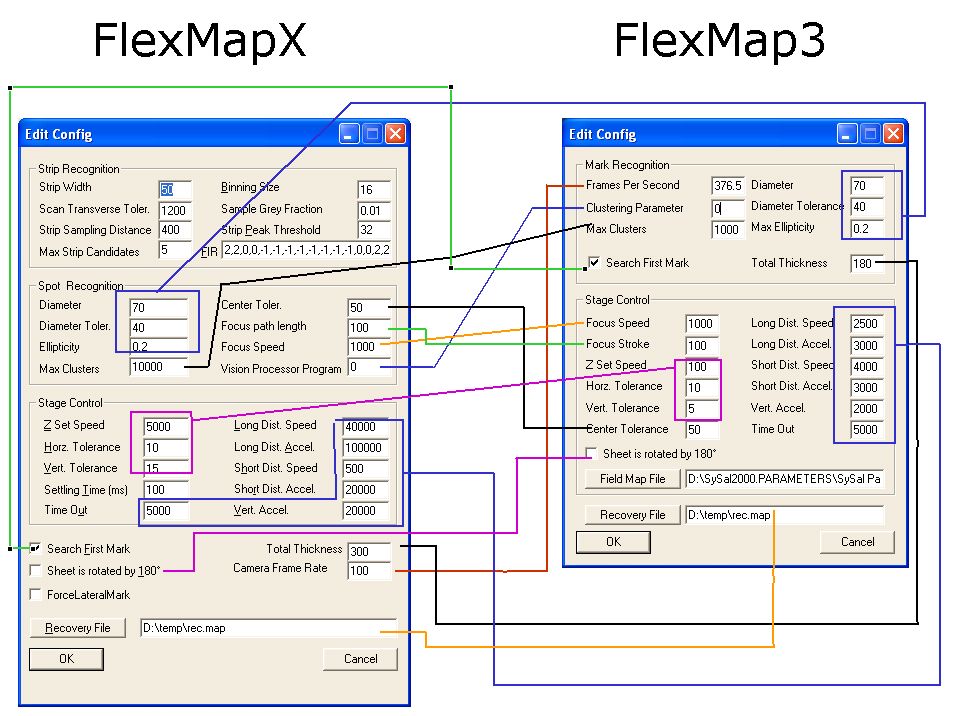

The following picture shows how the configuration of FlexMap3 is included in FlexMapX.
